Canulate Drill AM-BD-2011
- Home
- Canulate Drill AM-BD-2011
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Application and feature
Electric surgical drill&saw is one of power tools widely used in orthopedic operation. Gradually replaced traditional industrial drill and saw, it can be autoclaved up to 135°C high temperature and 1.6Mpa high pressure. Some of bacteria can be killed by high temperature and pressure, fumigating can not do. Meanwhile, it can shorten sterilization time. Under high temperature and high pressure, just need 20 minutes, win the valuable time for the patient. The device is optional, good looking, small size, light weight, no wires, easy to carry, safe operation.

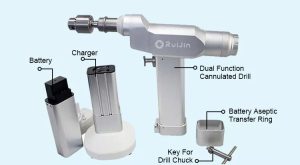

Standard configuration
One drill unit
One charger
Two batteries
Two aspetic battery transfer rings
One drill chuck key
One instruction manual
One Aluminum case
Technical Specifications
PARAMETER
SPECIFICATION
Hand Piece
Working voltage 14.4V Output power ≥20W Unit rise in temperature ≤20°C
Charger
Input voltage AC220V,50Hz Output power 14.4V, 900mA Input power 30VA
Input voltage AC220V,50Hz Output power 14.4V, 900mA Input power 30VA
voltage 14.4V Charging time About 3 hours
Canulate Drill
Output voltage 100W torque 12.5/7.5 N.m Rotating speed 0-650/1000rpm noise ≤45dB
