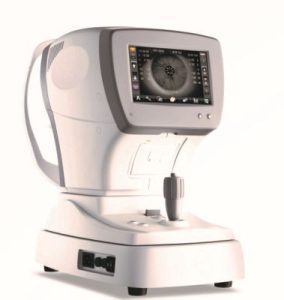

AUTO (KERATO) REFRACTOMETER AM-FA-6800
- Home
- AUTO (KERATO) REFRACTOMETER AM-FA-6800
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
7″ TFT LCD monitor
Bigger, better monitor and icon-display menu for easier operation and settings.
Refractive measurement with Hexagon prism
With high quality of hexagon prism and highly sensitive CCD, it provides unmatched accuracy and reliability.
Motorized joystick (FA-6800)
A motorized joystick with auto vertical tracing mode is adopted, so operation is easier.
Auto focus function
Just move, it will automatically focus the eye and get the value.
Technical Specifications
| Retractometer | |
| Sphere | -20~+20D(VD=12) 0.125D step |
| Cylinder | -8~+8D 0.125D step |
| Axis | 0~180° (1° step) |
| PD | 45~88mm, 1mm step |
| VD | 0mm, 12mm, 13.75mm |
| Min.Pupil Size | Ø2.0mm |
| Keratometry | |
| Radius of curvature | 5.0~10mm (increment: 0.01mm) |
| Corneal power | 33.75~67.50D (when corner equivalent refractive index is 1.337)
(increment selectable from 0.12, 0.25D) |
| Corneal astigmatism | 0.0~8.00D (increment selectable from 0.12,0.25D) |
| Axis | 1~180° (increment: 1°) |
| Corneal diameter | 2.0~14.0mm (increment: 0.1mm) |
| Memory of data | 10 measure value for each right and left eye |
| Radius of curvature | 5.0~10mm (increment: 0.01mm) |
| Others | |
| Chart | Follow-up colorful fogging chart system |
| Display | 7″ TFT LCD |
| Power supply | 220V±10% 50Hz 60VA |
| Thermal printer | |
| Dimension | FA-6800: 514mmX284mmX465mm
FA-6500: 478mmX268mmX472mm |
| Weight | ~15.5kg |
