Description

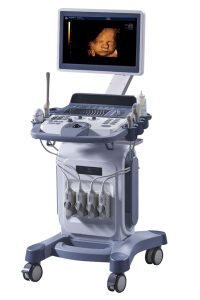

The familiar PC system, 15 inch LED monitor, ergonomic & rotatable design operation panel, free arm with 360 degree rotation and four probe connectors make the machine, operate easily and conveniently
Technical Specifications
PARAMETER
SPECIFICATION
Displaying mode
B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM
Signal processing
Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing
THI PSHI TM broadband multi-frequency harmonic image Speckle-reduction Power adjustable Smoothing function iBeam TM intelligent space image technology iZoom TM undistorted full screen image Free Xros M Engineer control technology with low power consumption Edge enhancement Image optimizing disposal One-key optimization Image conversion Up/down conversion Left/right conversion Intelligent built-in workstation system(Chinese/English) Doppler Sound output volume adjustable Wall filter adjustable Base line adjustable Sampling frame adjustable Spectrum sampling volume adjustable Spectrum sampling volum
General measurement
B mode-distance, circumference, area, volume, angle, area Red, Diam Red, M mode- distance, time, velocity, heart rate
Abdomen measurement
Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen
OB packages
EDD table: GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC,APAD, Cxlength.
Gynecological packages
Uterine measurement (Uterine diameter, uterine endometrial);left/right ovary measurement; left/right saccules measurement; Cervix; Uterine depth
Urology packages
Left/right kidney measurement, Volume, Cortex
Small Parts Measurement
Left/ right thyroid, volume, Isthmus and calculating report
Cardiac Measurement Package
Heart rate, Valve speed, LV, aortic, mitral, ventricular
Skeletal & Muscles
Skeletal & Muscles, distance, area, Hip angle
Vascular
Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA
Body mark
Abdominal , Gynecology, Obstetrics, Small parts
Scanning depth
Up to 300mm
Cine loop
Automatically & manually, speed control
Image storage format
BMP,JPEG,PNG
Image storage size
500G
Input/output ports
VGA, USB port, DICOM port(network port)
Standard Configuration
Main unit, 15 inch LED monitor, 3.5Mhz convex probe, DICOM 3.0,free arm, 4 probe connectors, user’s manual, 500G hard disk, DVD-RW
Option
7.5Mhz linear probe, 6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, 19 inch LED monitor, laser printer, biopsy kit
