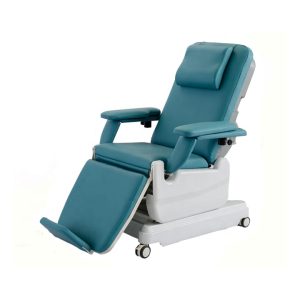

Electronic Dialysis Chair AM-DC01
- Home
- Electronic Dialysis Chair AM-DC01
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Resources
- Full steel frame chair provides strong structure and load capacity, safe working load up to
240kg.
- High density polyurethane foam (45D) for mattress with moderate elasticity and
Durability provides additional comfort for patients who need to sit for long periods.
- The soft upholstery is made of breathable PVC material, which is waterproof and fire retardant,
anti-corrosion, easy cleaning and disinfection. PVC leather is resistant to disinfectants,
blood and urine too.
- Four upholstery colors to choose from. Warm and light upholstery colors contribute to
mental well-being of the patient.
- Manual control allows quick positioning for any situation, including Trendelenburg
(or shock position) at the push of a button.
- φ100mm silent medical castors with separate brake.
- The detachable headrest pillow can be adjusted according to the height of each patient.
- Three Linak motors from Denmark for you to choose from.
- Various OPTIONAL accessories (at extra cost): Battery, LED reading lamp, paper
toilet roll holder, Table over the bed, Folding table.
Technical Specifications
PARAMETER
SPECIFICATION
total length
2000 mm ± 20 mm
Backrest adjustment
(-12°~75°) ±5°
Seat width
600 mm (total width 930 mm including armrest) ± 20 mm
Legrest adjustment
(-45°~12°) ±5°
Seat height
550mm ± 20mm
Backrest length
870 mm ± 20 mm
Leg support length
550mm ± 20mm
Armrest dimension
L600*W170*D75mm ±20mm
Armrest and seat height
180 ~ 245mm ± 20mm
Leather
PVC leather
Cushion
Sponge
frame
Q235 Steel
Laboratory power supply
AC110V-240V 50/60Hz
Engine
3
Chassis Dimension
1080mm × 700mm ± 20mm
Beaver
4x (φ100mm swivel castors with separate brakes)
Pillow size
400mm×230mm×80mm ±20mm
Weight
65 kg ± 3 kg
Maximum Safe Load
240KGS
Maximum food table load
10 KGS
storage environment
Temperature: -20°C~60°C, relative humidity: 10%~85%
Operating environment
Temperature: 0℃~35℃, relative humidity: 10%~85%
