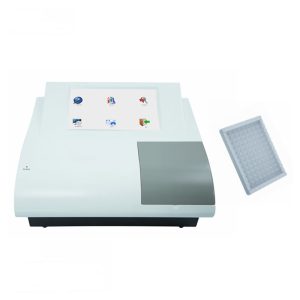

Elisha Reader AM-ARR-201
- Home
- Elisha Reader AM-ARR-201
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
Windows operation interface, figure button, mouse operation, touch screen.
96-well plate, multiple tests in the single plate.
Arrangement of Test item in micro-plate can be store and re-use
Parameter can be modified and stored
Plate shaking, speed and time adjustable
Open system, test item and parameters can be added or modified.
Large storage for 1000 test item and 1,000,000 results
10.4 inch color touch LCD
Printing comprehensive report, include hospital and patient information and test results
Built-in portable computer, easy to use.
Technical Specifications
| PARAMETER | SPECIFICATION |
| Microplate types | 96-well plate(U,V,or plat-bottom) |
| Wavelength | 405nm,450nm,492nm,630nm,4 free positions for additional filters wavelength accuracy < 2nm |
| Reading range | 0.000-4.000 Abs |
| Measurement range | 0.000-3.000Abs |
| Light source | LED, >100,000 hours |
| Measuring system | 8-channel optical system |
| Test mode | End-point, kinetic, Multi-wave analysis |
| Resolution | <1% or ±0.001Abs |
| Stability | <±0.005Abs/10min |
| Well Coincidence | ≤0.015A |
| Linearity | r > 0.999 |
| Repeatability | < 0.3% |
| Reading speed | 5s single wavelength , 10s double wavelength |
| QC | West guard Multi-rule, automated QC alert |
| Self-Checking function | Self-checking and calibration function |
| CPU | High-speed CPU |
| Printer | External jet printer, multi-form patient report |
| Interface | RS232 interface, USB |
| Power supply | 220VAC 15% or 110VAC 15%50-60Hz 100W |
| Work environment | Temp 5°C-40°C；Humi ≤85% |
| Machine Dimension | 44CM*37CM*24CM |
| Weight | 13 KG |
