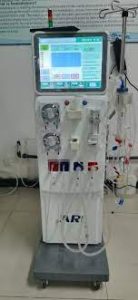

Hemodialysis Machine AM-ADM-8

AM-ADM-8

Hemodialysis Machine AM-ADM-8

Dialyzed

Dialysate Temperature: Preset range 33.0℃~39.0℃, ±0.1℃

Dialysate flow: Less than 800 ml/min (Adjustable)

Dialysate concentration: 12.1 mS/cm~16.0 mS/cm, ±0.1 mS/cm

Dialysate ratio: Strong variproportions

UF (dehydration): 0 ml/h~4000 ml/h

Resolution: 1ml

Accuracy: ± 1%

tudoarin Bomb

Syringe size: 20, 30, 50ml

Flow range: 0ml/h ~ 10ml/h

First dose range: 1.0 ~ 20.0 ml

Resolution: 0.1ml

Accuracy: ±0.2 ml or ±5% of reading

Extracorporeal circulation

Venous pressure: -180 mmHg ~ +600 mmHg, ±10 mmHg

Blood pressure: -380 mmHg ~ +400 mmHg, ±10 mmHg

TMP pressure: -180 mmHg ~ +600 mmHg, ±20 mmHg

Blood pump, assistant pump flow range: 30ml/min ~ 600ml/min (inner diameter Ф8mm)

Resolution: 1ml

Accuracy: ±10ml/min or 10% of reading

Blood Leak Detection: Photochromic Detection

Bubble Detection: Double Protection

Disinfection and cleaning procedures

Chemical descaling: Room temperature/85℃, flow: 300~800ml/min (adjustable)

Chemical disinfection: Room temperature, flow: 300 ~ 800ml/min (adjustable)

Heat disinfection: 85℃, flow: 300~800ml/min (adjustable)

The intelligent disinfection setting from Monday to Sunday makes disinfection safer and more reliable.

data technology

Weight: 66kg

Input power: 1500w

Standby battery: 30 minutes

Water inlet pressure: 0.15 MPa ~ 0.6 MPa

Water inlet temperature: 5℃ ~ 30℃

Working environment: Temperature 10℃ ~ 35℃ with relative humidity less than 70%

Technical Specifications

PARAMETER

SPECIFICATION
