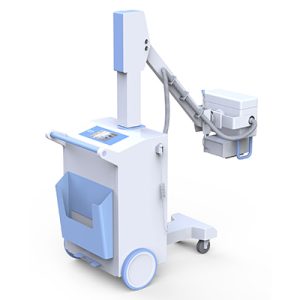

High Frequency Mobile X-ray Equipment AM-100
- Home
- High Frequency Mobile X-ray Equipment AM-100
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Purpose
The equipment is a combined high frequency X-ray video camera that can be conveniently moved to wards, ICU, operating rooms and so on for taking film.
Features
- Structure designed based on anthropotomy, with beautiful appearance, and easy to operate.
- Colorful Touch LCD display, human graphic controller to adjust parameters, multifunction of safety guard.
- With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
- With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
- It is featured with protection for shortage of high voltage, over-flowing of tube current and output over-loading as well as indication for failure.
- With a symmetrical beam applicator to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiograph.
Speciification
| PARAMETER | SPECIFICATION |
| Power Output | 2.5KW |
| Frequency | 25KHz |
| X-ray Tube | Fixed anode |
| Focus 2.6mm | |
| Tube Voltage | 40~100KV (interval 1KV) |
| Tube Current | 40~49KV 50mA 1~160 mAs |
| 50~59KV 42mA 1~160 mAs | |
| 60~69KV 36mA 1~140 mAs | |
| 70~79KV 31mA 1~125 mAs | |
| 80~89KV 28mA 1~100 mAs | |
| 90~100KV 25mA 1~80 mAs | |
| mAs | 1.0~160 mAs (45steps) |
| Power Supply | 220V±10% 50Hz inner-resistance≤1.0 |
