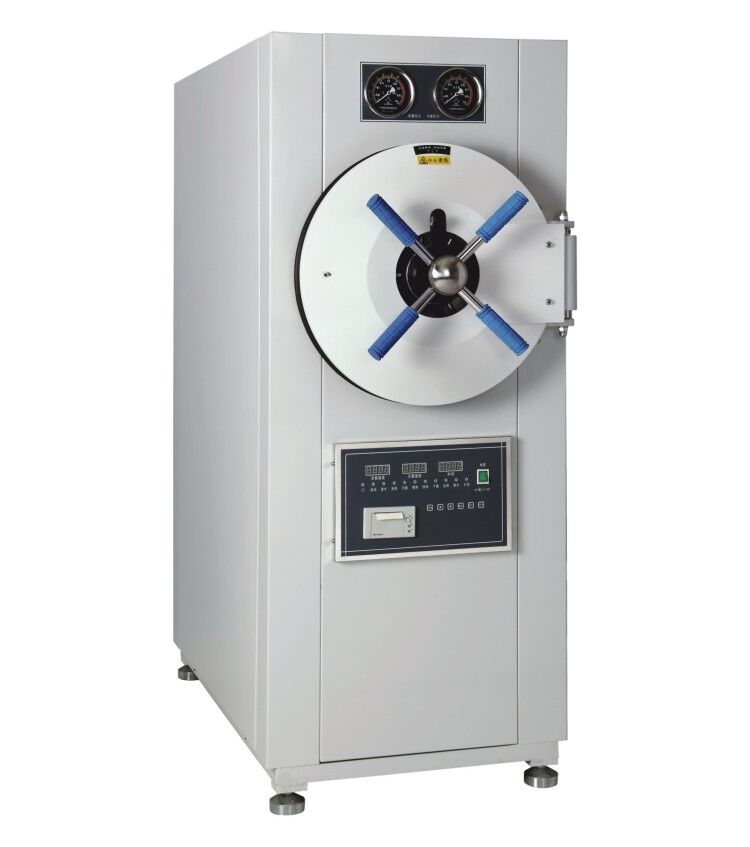

Horizontal Cylindrical Pressure Steam Sterilizer AM-WS-YDB
- Home
- Horizontal Cylindrical Pressure Steam Sterilizer AM-WS-YDB
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Characteristics
- Sterilizing course automatic sterilization controlled by computer, easy to operate.
- With drying function, suitable dressing drying.
- With over-temperature, over-pressure auto-protect device.
- The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.
- The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
- The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
- The surface of the sterilizer is steel coated, the chamber of the sterilizer is made of stainless steel.
- With printer
Technical Specifications
PARAMETER
SPECIFICATION
Model technical data
WS-280YDB WS-200YDB WS-150YDB
Sterilizing chamber volume
280L(φ600×1000mm) 200L(φ515×1000mm) 150L(φ440×1000mm)
working pressure
0.22 MPa
working temperature
134℃
Adjustment of temperature
40℃ - 134℃
Time of sterilization
0-99 min
Time of drying
0-99 min
Heat average
≤± 2℃
Power
12KW/380V 50Hz 9KW/380V 50Hz 9KW/380V 50Hz
Dimension
1520×910×1900 1400×750×1700 1400×650×1600
Package
1680×1080×2100 1560×910×1880 1560×820×1820
GW/NW
570/462 KG 436/350 KG 430/340 KG
