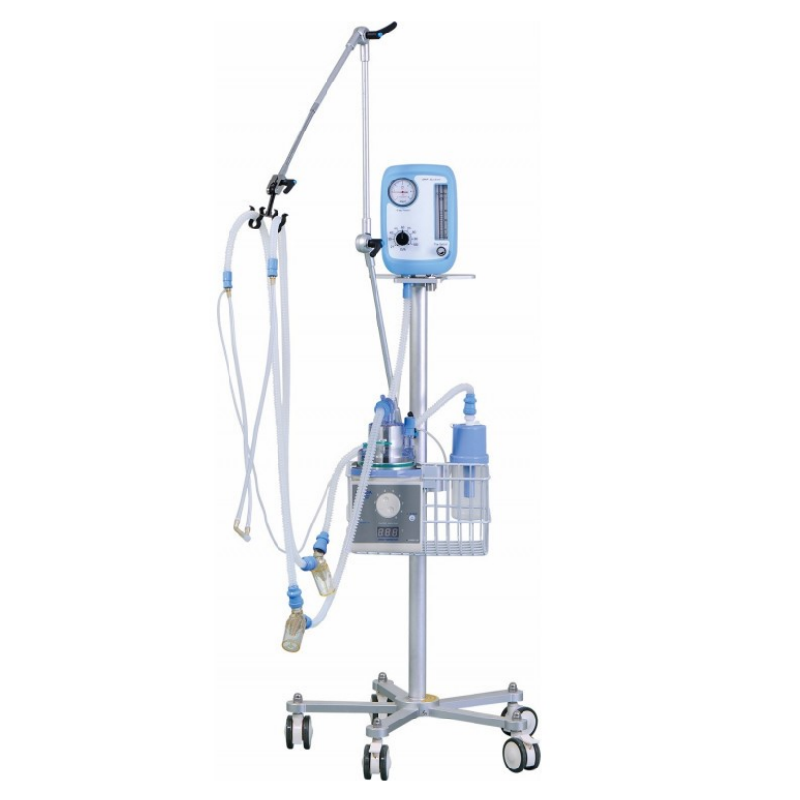

Infant CPAP System AM-200D
Technical Specifications
PARAMETER
SPECIFICATION
Inspiratory oxygen concentration
Regulating range: 21%~100%
Regulating range: 21%~100%
Regulating range: 21%~100%
CPAP
Regulating range: 0~10cmH2O
Monitoring range: 0~10cmH2O
Monitoring range: 0~10cmH2O
Continuous flow
Regulating range: 1.5 ~15L/min
Monitoring range: 1.5 ~15L/min
Monitoring range: 1.5 ~15L/min
Gas source
Oxygen, Compressed air
Pressure
280kPa~600kPa
Nominal working pressure
350kPa
Display
No
Alarm and safety protection
No
Back-up power
No
Packing Size (2 wooden cases)
Main Engine: L700*W710*H380mm, GW: 35KG; NW: 17.7KG
Frame: L160*W195*H1100mm, GW: 6.7KG; NW: 2KG
Frame: L160*W195*H1100mm, GW: 6.7KG; NW: 2KG
