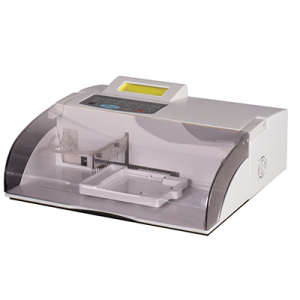

Microplate Washer AM-AR-2000A
- Home
- Microplate Washer AM-AR-2000A
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
- Interchangeable manifolds for 8- and 12-well strips
- One or more strips of ELISA Plate washing keyboard choice directly
- Minimal residual volume (<1µL/well)
- Dispense precision CV<2%
- Detachable ELISA Plate pallet, convenient for the pallet clearing and sterilization
- Cleaning head 5-locations location adjusted,
- Shaking or soak time programmed.
- Automatic waste and lotion and distilled water liquid warnin
Technical Specifications
PARAMETER
SPECIFICATION
Micro-plate Types
48 / 96-well U-/V- / Flat-bottom plates or strips
Residual
≤ 1μl / well
Dispense volume
50μl-950μl, adjustable
Washing Cycles
1-99, optional
Washing Mode
1-12, rows and ranks select-able
Soaking Time
0-999s, adjustable
Shaking Time
0-999s, adjustable
Display
Large LCD
Channel
1 channels for washing liquid, 1 channel for waste liq
Memory
Up to 100 programs can be stored
Interface
RS232
Power Supply
220\110VAC ± 10%, 50\60Hz
Temperature
5°C – 30°C wet ≤ 90%
Dimension/N.W
430mm (L) × 380mm (W) × 120mm (H)/11KGS
