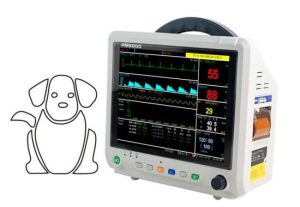

Patient Monitor AM-VET-5000V
Features
- 12.1 inch TFT LCD display
- Multiple display modes
- 3-level visual and audible alarm
- Connect with central monitoring system for remote and wireless monitor
- Wide-angle alarms indicator makes patient safer
- Advance patient information managements system
Standard Configurations
ECG/Resp/Temp/SpO2/NIBP/Lithium battery/Power Cord
Optional Accessories
ETCO2/Recorder/Trolley/Brace/IPMS8000 central station software
Technical Specifications
PARAMETER
SPECIFICATION
ECG
Lead mode
5 lead,RA,LA,RL,LL,V
Lead selection
I,II, III,V, AVF,AVL,AVR
ECG waveform
1 or 3 channels
Gain selection
0.25,0.5,1.2 and 4(mm/mv),auto
Sweep speed
6.25mm/s,12.5mm/s,25mm/s,50mm/s
Heart rate range
20-350BPM
Accuracy
±2BPM or ±2% (whichever is greater)
Resolution
1BPM
S-T deletion
Yes
NIBP
Method
Oscillometric with step-down deflation
Range of systolic
40 to 270mmHg
Range of mean arterial
30 to 220mmHg
Range of diastolic
20 to 200mmHg
Measurement time
30 to 50 seconds typical , 120 seconds maximum
Alarm range
20-260 (in 1mmHg steps), and OFF
Temperature
Channel
Two
Measuring range
25-45°
Accuracy
±0.2°C, plus the temperature sensor tolerance
Resolution
0.1°C
SPO2
Range
0-100%
Accuracy
±2 at 70-100%
Resolution
1%
Range of pulse rate
30-250BPM
Resolution
1BPM
Respiration
Measurement range
0-120rpm
Accuracy
±1rpm
Resolution
1rpm
CO2 (Optional)
Range
0-150mmHg
Accuracy
±2mmHg
Range of Respiration
2-150rpm
Accuracy
±1%rpm
Preheating time
10s
Power
AC input:100 to 240v, 50/60Hz
Environmental
Temperature
-40 to 75°C(Storage)
0 to 50°C(Operating)
Humidity
15 to 95% (Operating)
10 to 95% (Storage)
Battery
Full charging time
3 hours
Operating time
more than 5 hours
Power consumption
35W
Dimension
Length
183mm (7.20 inches)
Width
324mm (12.76 inches)
Height
324mm (12.76 inches)
Depth
3.75kg (8.27lbs)
