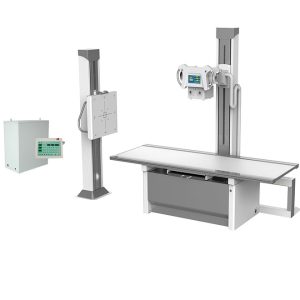

Radiography X-ray machine AM-KB-500
- Home
- Radiography X-ray machine AM-KB-500
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
- 125kV、500mA、Single-phase full-wave voltage rectifier bridge
- It has X-ray tube capacity protection, rotating anode start protection, photography timing circuit thyristor controlled and X-ray tube overheat protection, to ensure the long-term safe operation of X-ray tube.
- Multifunction radiography table, no earth-track double rope fall protection safety column, attractive appearance, bed vertical and horizontal movement can be flexible, X-rays of each component can be moved and transported lightly and flexibly, electromagnetic brake, and can withstand various loading Specifications radiography cassette.
- Radiography currents is bigger, offer more options to users
- Grid Ratio is of 10:1, the bigger, the better image quality
Standard Configuration
1 set of 5G High voltage transformer components,
1 set of SC3F X-ray tube,
1 KB-500 controller,
1 set of CDG radiography table,
1 YS11S manual collimator,
2 sets of high-voltage cable and other accessori
Technical Specifications
| PARAMETER | SPECIFICATION | ||
| Generator | Power Supply | Voltage | 380V±10% |
| capacity | ≥30KVA | ||
| power resistance | ≤0.3Ω | ||
| Frequency | 50Hz±1 Hz | ||
| Radiography | Tube Electricity | 100-500mA, adjustable | |
| Tube Voltage | 40-125KV, adjustable | ||
| Exposure Time | 0.02-5S,23grades,adjustable | ||
| Model | XD51.30-50/125kV | ||
| Focus | 1×1mm/2×2mm | ||
| Capacity | 140KHU | ||
| The anode rated speed | 2800r/min | ||
| Optional X-ray Tube TOSHIBA E7843X | Electrical: Circuit (Center-grounded) | Three-phase full-wave rectified or DC Operating | |
| Tube Voltage: Radiographic | 40 ~ 150 kV Max. | ||
| Focal Spot (IEC60336) | Large Focus | 1.2 mm | |
| Small Focus | 0.6 mm | ||
| Input Energy (at 0.1s) | Large Focus | 46 kW ~ 50 kW | |
| Small Focus | 20 kW ~ 22 kW | ||
| Collimator | Manual leafy type rectangular radiation field. Manual, adjustable, has 1-minute timer | ||
| Deluxe CDG Radiography Table | Size | 5″×7″，8″×10″，10″×12″，11″×14″，12″×15″，14″×14″，14″×17″ | |
| Grid | Rate：10:1 | ||
| Grid density：40L/cm， | |||
| Focusing distance：100cm | |||
| Mobile range：≥640mm | |||
| Table movement | vertical:1280mm，cross:215mm | ||
| Tube movement | Around the cross arm:±180°，Around longitudinal axis rotation±90°,Vertical stroke≥1130mm | ||
| The break of the table | Electromagnetic locking | ||
| Column movement | Self rotate :≥180°;Every 90 ° positioning;vertical:1500mm | ||
| Vertical Bucky Stand | Lifting range | 1480mm | |
| Radiography Specifications | 8″×10″～14″×17″ | ||
| Fixed grids | Convergence distance: 180cm | ||
| Grid ratio: 10:1, Grid density: 40L/cm |
