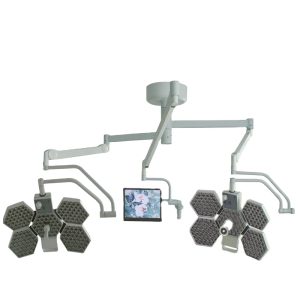

Shadowless Operating Light AM-SY02-LED5

AM-SY02-LED5

Shadowless Operating Light AM-SY02-LED5

Features

-The Whole reflection optical system is made by CAD/CAM technology, its illumination depth is up to 1300mm; by using color temperature compensation technology, the color reversion is upraised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.

-The panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable. Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely.

-360 universal design can satisfy various needed height and angle in the operation.

-Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection

Technical Specifications

PARAMETER

SPECIFICATION

Illuminance
≥160,000Lux / ≥160,000Lux
Color Temperature
3800±500K, 4400±500K, 5000±500K
Color Reduction Index (Ra)
93
Illuminance Depth
≥1300mm
Total Irradiance
544W/m² / 544W/m²
Size of Light Field
250~300mm
Service Life of Illuminant
50,000h
Power Supply Voltage
AC110-240v, 50/60Hz
Brightness Adjustment
Automatic 8-stage continuous light adjustment
Lowest Height of Installation
2900mm
Total Power Consumption
160W
Total LED Bulb Quantity
216pcs (18*6+18*6)
