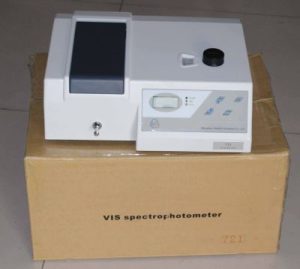

Spectrophotometer AM-721
- Home
- Spectrophotometer AM-721
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
– Digital Display Measurements
– Automatic Zero and 100
– Using imported tungsten lamp to ensure the service life of the instrument
– Wide sample room with a maximum of 10 cm colorimetric dishes
– The function of connecting printer and computer can be realized by selecting RS232 output port.
– The instrument adopts the latest computer processing technology and is easy to operate.
Technical Specifications
PARAMETER
SPECIFICATION
Optical System
Achromatic Czerny-Turner (1200L/mm grating)
Wavelength Range
350-1020nm
Wavelength Accuracy
±2nm
Spectral Bandwidth
6nm
Wavelength Repeatability
≤1nm
Transmittance Accuracy
±1%T
Stability ±0.004A/h
@500nm
Noise
≤0.3%T
Stray Light
≤0.3%T @360nm
Operation Mode
T、A、C
Zeroing Mode
automatic
Output Mode
no
light Source
Domestic tungsten lamp
Print Interface
Optional
Luminosity Range
0-200%T, -0.3-3A, 0-9999C
Dimension
420x190x350mm
Net Weight
8kg
