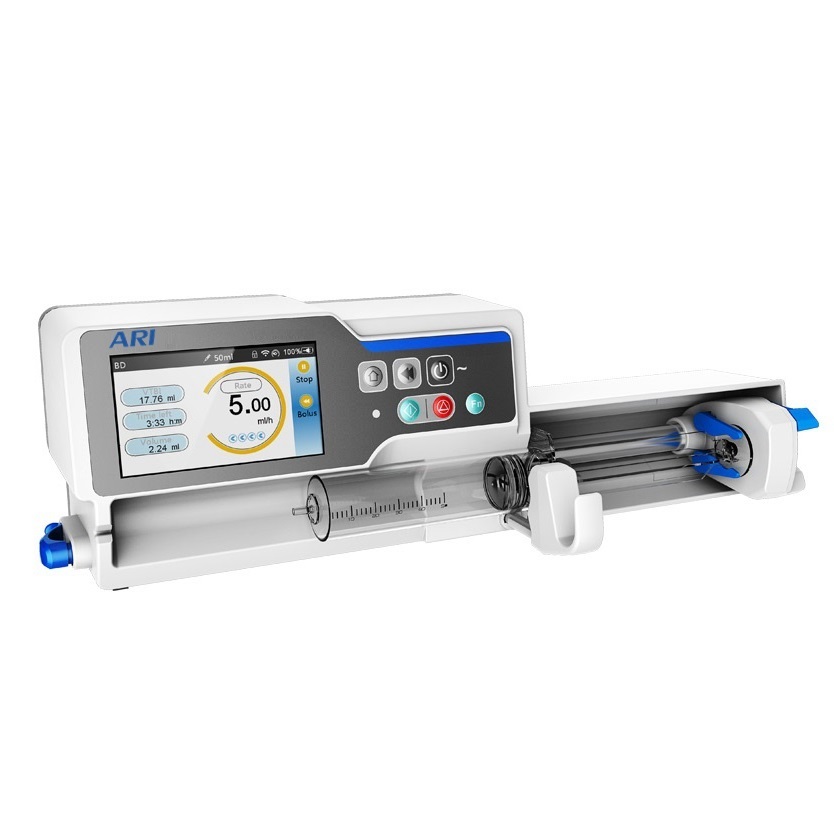

Syringe Pump (Advanced) AM-ASP-1800S
- Home
- Syringe Pump (Advanced) AM-ASP-1800S
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Technical Specifications
PARAMETER
SPECIFICATION
Screen
4.3-inch LCD color touch screen
Syringe Types
2ml, 5ml, 10ml, 20ml, 30ml, 50/60ml Open system, automatic recognition of syringe brands and sizes after calibration
Infusion Mode
ml/h (include Rate mode, Time mode), Body weight, TIVA, Loading-dose, Ramp up/down, Sequence, Drug Library mode
Accuracy
±2%
Flow Rate Range
0.01-1500ml/h (min. increment 0.01ml/h)
VTBI
0-9999 ml
0-9999 ml
0.01-5ml/h adjustable
Bolus Rate
0.1-1500ml/h (automatic & manual bolus available)
Occlusion Level
12 levels selectable
Interface
MINI USB
Wireless
WIFI (optional)
TCI function
(Optional)
Alarm Type
VTBI Infused, Syringe empty, Pressure high, Battery empty, Check syringe, KVO finished, VTBI near end, Syringe near empty, Battery near empty, Reminder alarm, No power supply, System error, etc.
Special Features
Titration
Change flow rate without stopping infusion
Last Therapy
Last therapies can be stored and used for rapid infusion
Drug Library
No less than 2000 drugs
Anti-Bolus
Automatic drop line pressure to reduce bolus impact after occlusion
Purge
Remove the air bubble
Remove the air bubble
Avoid misoperation
Standby Mode
Standby time 00-99h59m adjustable
Relay Mode
Different pumps work in sequence on infusion workstation (optional)
Micro Mode
Limit the max infusion rate to double ensure patient safety
DPS
Real-time pressure display in graphically and numerically
Brightness
Adjustable
Alarm Volume
Adjustable
History Record
More than 5000 entries
Power Source
AC Power
110V-240V, 50/60Hz
External DC Power
12V
Battery
Lithium Polymer battery 11.1V 2600mAh More than 12 hours operating time @ 5ml/h Less than 5 hours for fully charged
Others
Classification
Class I, CF
Waterproof
IP24
Dimension
400(L)*90(W)*120(H) mm (with cover) 235(L)*90(W)*120(H) mm (without cover)
Weight
Approx. 1.7kg
