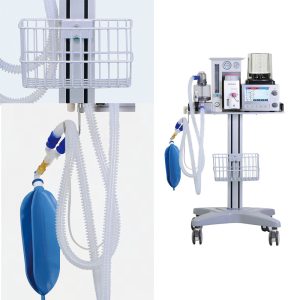

Veterinary Anesthesia machine
- Home
- Veterinary Anesthesia machine
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
- No electricity will be needed,only manual operation
- Module rack with polyester medical material, high strength and light weight.
- Superior thin spray technology, delicate color, beautiful and durable.
- High precious vaporizer, Halothane,Enflurane, Isofurane and Sevoflurane could be choosed freely
- Main unit are only 2Kg(w/o vaporizer), light weight and easy to move
- With a dedicated handle, could move by hand-pull.
- Two gas source:O2 ,N2O, suitable for more patient type
- Classical CO2 circle absorber with 1 canister,low resistance,minimum gas leakage, 60cmH2O peak pressure solution.
- Ventilator (Optional):TH-1,TH-1A
Technical Specifications
| PARAMETER | SPECIFICATION |
| Ventilation mode | Closed, Semi-closed, Semi-open |
| Application | 2-100KG animals |
| Gas source | O2, N2O 0.25Mpa~0.65Mpa |
| Two tube (O2, N2O) | Scope,0—10L/min.With linkage device,O2 concentration not low than 25% |
| O2 flush | more than 25L/min |
| Respiratory mode | Manual,Oxygen |
| TV | 50~2000mL |
| I:E | according to the doctor operation |
| BPM | according to the doctor operation |
| APL Valve pressure | 0.5-6KPa |
| Monitoring | Airway pressure,respiratory mode |
| Three Gauges | one for O2 ,one for N2O, one for airway pressure |
| Environment Requirement | |
| Temperature | Operation: 18~36 ºC |
| Storage: -20~55 ºC | |
| Humidifier | Operation:45%~75% |
| Storage:≤93% | |
| Atmospheric pressure | Operation:0.95~1.05 bar |
| Storage: 500hPa~1060hPa | |
| Altitude | Operation:500 to 800mmHg (3565~-440m) |
| Storage:375 to 800mmHg (5860~-440m) |
TH-1 Ventilator (Optional)
- Control method : Gas driving electronic controlled
- Display : High light LED display
- Ventilation mode : Volume mode and Manual mode
- Tidal Volume : 50 ~ 1600ml
- Breath frequency : 1 ~ 90BPM
- I:E ratio : 4:1 ~ 1:6
- Monitor parameter : Tidal volume, breath frequency, MV
- Alarm : MV high alarm, MV low alarm, TV high alarm, TV low alarm
