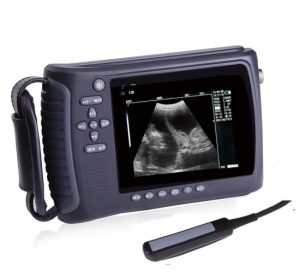

Handheld Veterinary B/W Ultrasound Scanner
Features
- It is suitable for pigs, dogs, cats, sheep, cattle, horses and other animals.
- 5.6 inch LED display.
- User-friendly operation interface.
- Display mode: B, 2B, B/M.
- USB, TF card ports are for convenient and fast image storage and playback.
- Integrated long life lithium battery ensure long power outages check, AC and DC dual-use.
- Real-time dynamic beam apodization.
Standard configuration
Machine (including a lithium-ion battery)
6.5MHz rectal probe
User's Manual
Adapter
8G TF memory card
Aluminum suitcase
Optional
7.5MHz high-frequency linear probe,
3.5MHZ electronic convex probe
7.5MHz back fat probe
5.0MHz micro-convex probe
Lithium-ion battery
Car adapter
External charger
Horseshoe convert
Technical Specifications
PARAMETER
SPECIFICATION
Focus
three sections electronic focus, support point by point focus
Gain adjustment
main gain, near and far field adjustment can reach 255
Frame correlation
15 adjustable
Scan mode
convex array
Scanning depth
57-230mm, 15 levels adjustable
Cine loop
255 frames
Built-in battery
rechargeable lithium-ion battery, imported 2600mAh standard batteries, more than 4 working hours
Display mode
B, B + B, B/M
Gray
256 levels
Pseudo color
8 kinds
Image magnification
15 levels magnification
Measurements
distance, perimeter, area, volume, gestational age
parameter
up / down, left / right flip, pseudo color processing, frame correlation, focus conversion
Gain regulation
near field, far field, main gain dynamic adjustable continuously
Interfaces
mini USB interface, TF card interface
Machine size
240*120*45mm
Power consumption
25W
Weight
950g
